Product Name：Large Conduit Connector
Product Code：JFPM
Inquiry
General
Variants
JFPM Large Conduit Connector
Material
Nylon 66, reinforced nylon PA6
Color
Dark grey (RAL 7037), black (RAL 9005)
Temperature
-40℃~115℃
Protection grade
IP54, when O-ring and pipe sealing ring frm are used, the protection grade reaches IP68
Grey
Black

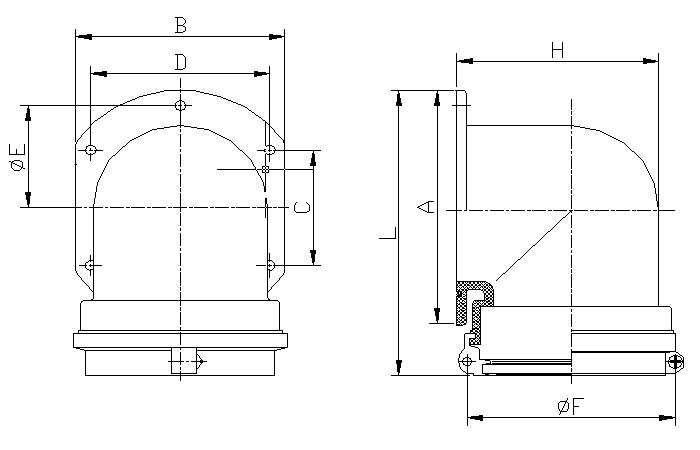

Conduit size
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
H
L
Screw
JFPM AD80G
JGFP-AD80B
AD80
112
95
60
50
96.5
98
155
155
M6
JFPM AD106G
JGFP-AD106B
AD106
151
126
74
65.5
121.5
121.5
183.5
183.5
M6
