18SC Series

Product Name：18SC Series

Product Code：18SC

General
Variants

Internal height	18mm
Maximum allowable cable outer diameter (mm)	16
Pitch	29.5 (34 knots per meter)
Maximum horizontal suspended length (m)	One
Optional bending radius R (mm)	38, 50, 75
Application scenarios	Can be used in situations with light loads, medium to short distances, low-speed, low-noise motion, etc.

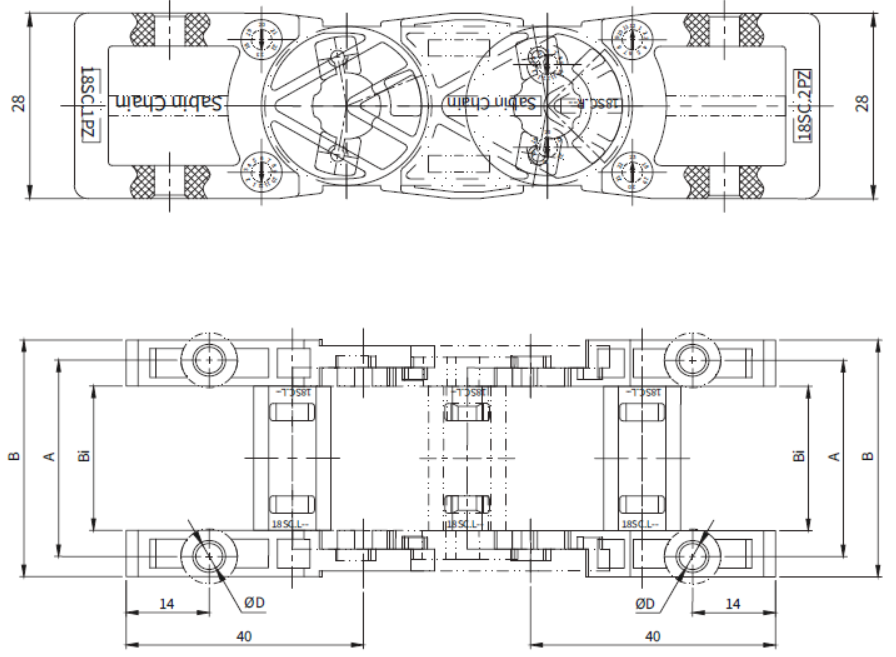

Model of drag chain	Inner width (mm)	Outer width (mm)	Corresponding fixed joint model	A(mm)	B(mm)	D(mm)
18SC.25.R	25	39	18SC.25.12PZ	34	41	4.5
18SC.37.R	27	51	18SC.37.12PZ	46	53	4.5
18SC.50.R	50	64	18SC.50.12PZ	59	66	4.5

★ When ordering, it is necessary to select the appropriate and exact value from the optional bending radius R.
