TRCF Thickened Rectangular Frame

Product Name：Thickened Rectangular Frame

Product Code：TRCF

General
Variants

TRCF Thickened Rectangular Frame
Introduction	Trcf is thickened on the basis of RCF rectangular frame, which is suitable for thick wall or installation at a certain angle
Material	Low carbon steel, stainless steel, etc
Frame installation	Welding
Use occasion	The thickened rectangular wall hole is easy to weld between the wall material and the frame
Supporting products	Hold down block WCT, through wall seal module DCM, partition plate FSP and grease lub

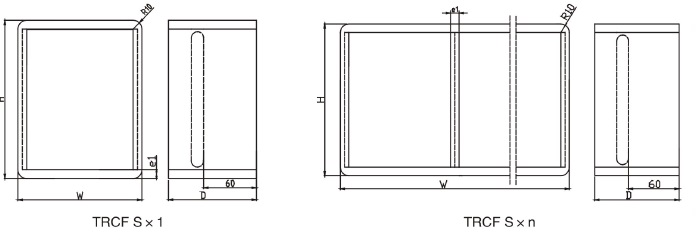

Model		Steel plate thickness e1(mm)	Number of holes			Single hole seal size (mm×mm)	Dimensions H×W×D(mm×mm×mm)	Weight (kg)
Carbon steel	316 stainless steel	Steel plate thickness e1(mm)	Horizontal(m)	Vertical(n)	Total(m×n)	Single hole seal size (mm×mm)	Dimensions H×W×D(mm×mm×mm)	Weight (kg)
TRCF2×1	TRCF2×1 S316	10	1	1	1	60×120	121×141×100	3.8
TRCF2×2	TRCF2×2 S316	10	2	1	2	60×120	121×271×100	6.6
TRCF2×3	TRCF2×3 S316	10	3	1	3	60×120	121×402×100	9.4
TRCF2×4	TRCF2×4 S316	10	4	1	4	60×120	121×532×100	12.2
TRCF4×1	TRCF4×1 S316	10	1	1	1	120×120	180×141×100	4.7
TRCF4×2	TRCF4×2 S316	10	2	1	2	120×120	180×271×100	8.0
TRCF4×3	TRCF4×3 S316	10	3	1	3	120×120	180×402×100	11.3
TRCF4×4	TRCF4×4 S316	10	4	1	4	120×120	180×532×100	14.6
TRCF4×5	TRCF4×5 S316	10	5	1	5	120×120	180×663×100	17.9
TRCF4×6	TRCF4×6 S316	10	6	1	6	120×120	180×784×100	21.2
TRCF6×1	TRCF6×1 S316	10	1	1	1	180×120	240×141×100	5.6
TRCF6×2	TRCF6×2 S316	10	2	1	2	180×120	240×271×100	9.4
TRCF6×3	TRCF6×3 S316	10	3	1	3	180×120	240×402×100	13.1
TRCF6×4	TRCF6×4 S316	10	4	1	4	180×120	240×532×100	16.9
TRCF6×5	TRCF6×5 S316	10	5	1	5	180×120	240×663×100	20.7
TRCF6×6	TRCF6×6 S316	10	6	1	6	180×120	240×784×100	24.5
TRCF8×1	TRCF8×1 S316	10	1	1	1	240×120	300×141×100	6.6
TRCF8×2	TRCF8×2 S316	10	2	1	2	240×120	300×271×100	10.8
TRCF8×3	TRCF8×3 S316	10	3	1	3	240×120	300×402×100	15.0
TRCF8×4	TRCF8×4 S316	10	4	1	4	240×120	300×532×100	19.2
