JSM.E-M Light And Thin Metal Cable Gland

Product Name：Light And Thin Metal Cable Gland

Product Code：JSM.E

General
Variants

JSM. E Light And Thin Full Claw Metal Cable Gland
Introduction	Light and thin design, economical and applicable metal cable joint
Temperature	-40℃ ~ 100℃, up to 120℃ in a short time
Material	The external metal is nickel plated brass; The inner core sleeve is nylon 66; Seal material: nitrile rubber
protection grade	Within the specified cable range and using appropriate O-ring, the protection grade can reach IP68

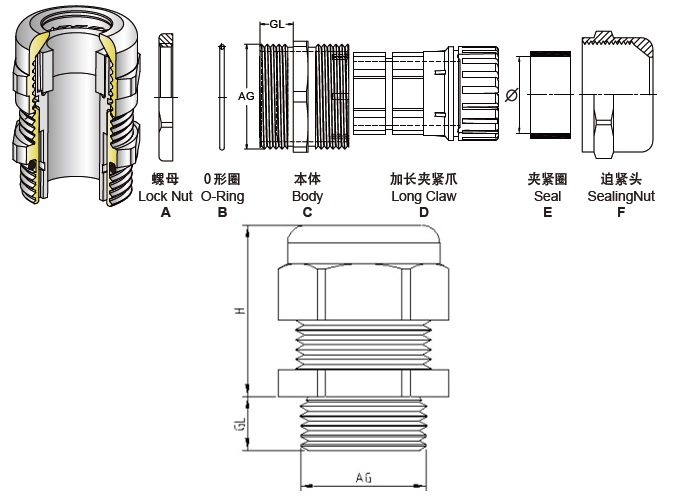

JSM. E-M Metric Thread

Model	Thread	Cable range Φ(mm)	Thread length GL (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM. E-M12×1.5	M12×1.5	3~7	6	14	50
JSM. E-M14×1.5	M14×1.5	3~7	6	14/16	50
JSM. E-M16×1.5	M16×1.5	4~8	7	17/18	50
JSM. E-M16×1.5-D	M16×1.5	6~10	7	20	50
JSM. E-M18×1.5	M18×1.5	6~10	7	20	50
JSM. E-M20×1.5-F	M20×1.5	4~8	7	22	50
JSM. E-M20×1.5-H	M20×1.5	6~10	7	20/22	50
JSM. E-M20×1.5	M20×1.5	8~12	8	22	50
JSM. E-M20×1.5-D	M20×1.5	10~14	7	24	50
JSM. E-M22×1.5-H	M22×1.5	8~12	8	22/24	50
JSM. E-M22×1.5	M22×1.5	10~14	8	24	50
JSM. E-M24×1.5	M24×1.5	10~14	8	24/27	50
JSM. E-M25×1.5-H	M25×1.5	9~16	8	24/28	25
JSM. E-M25×1.5	M25×1.5	10~14	8	24/27	25
JSM. E-M25×1.5-D	M25×1.5	13~18	8	30	25
JSM. E-M27×1.5-H	M27×1.5	10~16	8	30	25
JSM. E-M27×1.5	M27×1.5	13~18	8	28/30	25
JSM. E-M27×2.0-H	M27×2.0	10~16	8	30	25
JSM. E-M27×2.0	M27×2.0	13~18	8	28/30	25
JSM. E-M30×1.5-H	M30×1.5	10~16	8	28/34	25
JSM. E-M30×1.5	M30×1.5	13~18	8	28/34	25
JSM. E-M30×1.5-D	M30×1.5	15~20	8	34	25
JSM. E-M30×2.0-H	M30×2.0	10~16	8	28/34	25
JSM. E-M30×2.0	M30×2.0	13~18	8	28/34	25
JSM. E-M30×2.0-D	M30×2.0	15~20	8	34	25
JSM. E-M32×1.5-H	M32×1.5	13~18	8	30/34	20
JSM. E-M32×1.5	M32×1.5	15~22	9	34	20
JSM. E-M32×1.5-D	M32×1.5	18~25	9	40	20
JSM. E-M32×2.0-H	M32×2.0	13~18	8	30/34	20
JSM. E-M32×2.0	M32×2.0	15~22	9	34	20
JSM. E-M32×2.0-D	M32×2.0	18~25	9	40	20
JSM. E-M33×1.5	M33×1.5	15~22	9	34/36	20
JSM. E-M33×2.0	M33×2.0	15~22	9	34/36	20
JSM. E-M36×1.5-H	M36×1.5	15~22	9	34/40	20
JSM. E-M36×1.5	M36×1.5	18~25	9	40	20
JSM. E-M36×2.0-H	M36×2.0	15~22	9	34/40	20
JSM. E-M36×2.0	M36×2.0	18~25	9	40	20
JSM. E-M40×1.5-H	M40×1.5	18~25	9	40/43	20
JSM. E-M40×1.5	M40×1.5	22~28	10	43	20
JSM. E-M40×1.5-D	M40×1.5	22~30	10	50	20
JSM. E-M40×2.0-H	M40×2.0	18~25	9	40/43	20
JSM. E-M40×2.0	M40×2.0	22~28	10	43	20
JSM. E-M40×2.0-D	M40×2.0	22~30	10	50	20
JSM. E-M42×1.5	M42×1.5	22~28	10	43/45	10
JSM. E-M42×1.5-D	M42×1.5	22~30	10	45	10
JSM. E-M42×2.0	M42×2.0	22~28	10	43/45	10
JSM. E-M42×2.0-D	M42×2.0	22~30	10	45	10
JSM. E-M48×1.5	M48×1.5	25~32	10	50/52	10
JSM. E-M48×2.0	M48×2.0	25~32	10	50/52	10
JSM. E-M50×1.5	M50×1.5	25~32	10	50/55	10
JSM. E-M50×1.5-D	M50×1.5	32~38	12	58	10
JSM. E-M50×2.0	M50×2.0	25~32	10	50/55	10
JSM. E-M50×2.0-D	M50×2.0	32~38	12	58	10
JSM. E-M54×1.5	M54×1.5	32~38	12	58	10
JSM. E-M54×2.0	M54×2.0	32~38	12	58	10
JSM. E-M56×1.5	M56×1.5	32~38	12	58	10
JSM. E-M56×2.0	M56×2.0	32~38	12	58	10
JSM. E-M60×1.5	M60×1.5	37~44	12	64	5
JSM. E-M60×2.0	M60×2.0	37~44	12	64	5
JSM. E-M63×1.5	M63×1.5	37~44	12	64/68	5
JSM. E-M63×1.5-D	M63×1.5	42~53	15	76/78	5
JSM. E-M63×2.0	M63×2.0	37~44	12	64/68	5
JSM. E-M63×2.0-D	M63×2.0	42~53	15	76/78	5
JSM. E-M64×2.0	M64×2.0	37~44	12	64/68	5
JSM. E-M72×2.0	M72×2.0	42~52	15	76/78	1
JSM. E-M75×2.0	M75×2.0	42~52	15	76/78	1
JSM. E-M76×2.0	M76×1.5	42~52	15	76/78	1

JSM.E-P German PG Thread

Model	Thread	Cable range Φ(mm)	Thread length GL (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM.E-P7	PG7	3~7	6	14	50
JSM.E-P9	PG9	4~8	7	18	50
JSM.E-P9-D	PG9	6~10	7	20	50
JSM.E-P11	PG11	6~10	7	20	50
JSM.E-P13-F	PG13.5	4~8	8	22	50
JSM.E-P13-H	PG13.5	6~10	7	20/22	50
JSM.E-P13	PG13.5	8~12	8	22	50
JSM.E-P13-D	PG13.5	10~14	8	24	50
JSM.E-P16-H	PG16	8~12	8	24	50
JSM.E-P16	PG16	10~14	8	24	50
JSM.E-P19	PG19	10~14	8	24/27	50
JSM.E-P21-H	PG21	10~16	8	28/30	25
JSM.E-P21	PG21	13~18	9	30	25
JSM.E-P25	PG25	15~22	9	34	25
JSM.E-P29	PG29	18~25	10	40	20
JSM.E-P36-F	PG36	18~25	10	50	10
JSM.E-P36	PG36	25~32	10	50	10
JSM.E-P42	PG42	32~38	10	58	10
JSM.E-P48	PG48	37~44	12	64	5
JSM.E-P63	PG63	43~52	15	76/78	5

JSM.E-G G Thread

Model	Thread	Cable range Φ(mm)	Thread length GL (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM.E-G1/4	G1/4"	3~7	6	14	50
JSM.E-G3/8	G3/8"	4~8	7	17/18	50
JSM.E-G1/2	G1/2"	8~12	8	22	50
JSM.E-G3/4	G3/4"	13~18	9	30	50
JSM.E-G1	G1"	15~22	9	34/36	50
JSM.E-G1 1/4	G1 1/4"	22~28	10	43/45	25
JSM.E-G1 1/4-D	G1 1/4"	22~30	10	43/45	25
JSM.E-G1 1/2	G1 1/2"	25~32	10	50/52	20
JSM.E-G2	G2"	37~44	12	64	10
JSM.E-G2 1/2	G2 1/2"	42~52	15	76/78	10
JSM.E-G3	G3"	65~70	18	98	5

JSM.E-N NPT Thread

Model	Thread	Cable range Φ(mm)	Thread length GL (mm)	Wrench size A/F (mm)	Packing unit (pcs/pack)
JSM.E-N1/4	NPT1/4"	3~7	6	14	50
JSM.E-N3/8	NPT3/8"	4~8	7	18	50
JSM.E-N1/2	NPT1/2"	8~12	8	22	50
JSM.E-N3/4	NPT3/4"	13~18	8	30	50
JSM.E-N1	NPT1"	15~22	9	36	50
JSM.E-N1 1/4	NPT1 1/4"	22~28	10	45	25
JSM.E-N1 1/4-D	NPT1 1/4"	22~30	10	45	25
JSM.E-N1 1/2	NPT1 1/2"	25~32	10	50	20
JSM.E-N2	NPT2"	37~44	12	64	10
JSM.E-N2 1/2	NPT2 1/2"	42~52	15	78	10
