JQGMZ Quick Conduit Connector With Locking Metal External Thread

Product Name：Quick Conduit Connector With Locking Metal External Thread

Product Code：JQGMZ

General
Variants

JQGMZ Metal External Thread Quick Conduit Connector With Locking
Material	Made of nylon and brass nickel plated threads
Color	Blue
Temperature	-40-80℃
Product Description	BCM solid solid module is used to fill excess space or expand space. BCM R20 and BCM R40 solid solid modules are used to fill the fillet in the rrcf fillet frame

JQGMZ-M Metric Thread

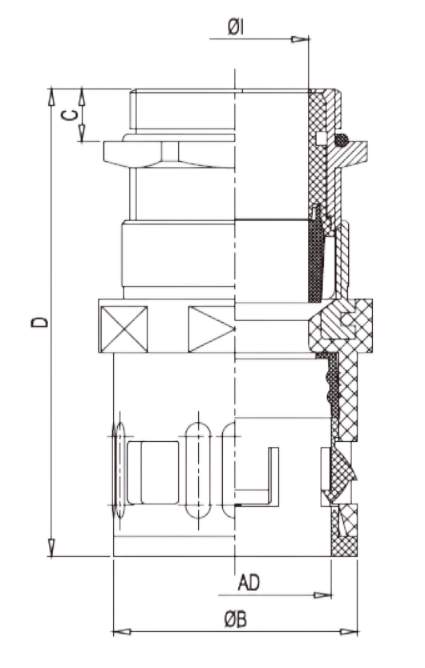

Model		Thread	Conduit size	Bayonetrange(mm)	LengthC (mm)	Aperture(mm)	Outer diameter (mm)	Length d (mm)	Packing unit
Grey	Black	Thread	Conduit size	Bayonetrange(mm)	LengthC (mm)	Aperture(mm)	Outer diameter (mm)	Length d (mm)	Packing unit
JQGMZ-M12G/AD10.0	JQGMZ-M12B/AD10.0	M12×1.5	AD10.0	3~6.5	6	6.6	17	50	50
JQGMZ-M16G/AD13.0	JQGMZ-M16 B/AD13.0	M16×1.5	AD13.0	4~8	7	8.4	20	56.5	50
JQGMZ-M18G/AD15.8	JQGMZ-M18B/AD15.8	M18×1.5	AD15.8	5~10	7	10.2	23	58.5	50
JQGMZ-M20G/AD15.8	JQGMZ-M20B/AD15.8	M20×1.5	AD15.8	5~10	7	10.2	23	58.5	50
JQGMZ-M20G/AD18.5	JQGMZ-M20B/AD18.5	M20×1.5	AD18.5	6~12	7	12.2	26	62	25
JQGMZ-M20G-D/AD21.2	JQGMZ-M20B-D/AD21.2	M20×1.5	AD21.2	8~14	7	14.2	29.5	64	25
JQGMZ-M22G/AD21.2	JQGMZ-M22B/AD21.2	M22×1.5	AD21.2	8~14	7	14.2	29.5	64	25
JQGMZ-M25G/AD21.2	JQGMZ-M25B/AD21.2	M25×1.5	AD21.2	10~16	7	16.2	29.5	64	25
JQGMZ-M25G-D/AD28.5	JQGMZ-M25B-D/AD28.5	M25×1.5	AD28.5	13~18	7	18.4	37	68	20
JQGMZ-M27G/AD28.5	JQGMZ-M27B/AD28.5	M27×2.0	AD28.5	13~18	8	18.4	37	68	20
JQGMZ-M30G/AD28.5	JQGMZ-M30B/AD28.5	M30×2.0	AD28.5	13~18	8	18.4	37	68	20
JQGMZ-M32G-D/AD34.5	JQGMZ-M32B-D/AD34.5	M32×1.5	AD34.5	18~25	8	25.2	44	79.5	10
JQGMZ-M36G/AD34.5	JQGMZ-M36B/AD34.5	M36×2.0	AD34.5	18~25	8	25.2	44	79.5	10
JQGMZ-M40G-D/AD42.5	JQGMZ-M40B-D/AD42.5	M40×1.5	AD42.5	22~32	9	32.5	52	85.5	5
JQGMZ-M48G/AD42.5	JQGMZ-M48B/AD42.5	M48×2.0	AD42.5	22~32	9	32.5	52	85.5	5
JQGMZ-M50G-D/AD54.5	JQGMZ-M50B-D/AD54.5	M50×1.5	AD54.5	37-44	9	44.5	58	95	5
JQGMZ-M63G/AD54.5	JQGMZ-M63B/AD54.5	M63×1.5	AD54.5	37-44	10	44.5	58	96	5
JQGMZ-M64G/AD54.5	JQGMZ-M64B/AD54.5	M64×2.0	AD54.5	37~44	10	44.5	58	96	5

JQGMZ-P German PG Thread

Model		Thread	Conduit size	Bayonetrange(mm)	LengthC (mm)	Aperture(mm)	Outer diameter (mm)	Length d (mm)	Packing unit
Grey	Black	Thread	Conduit size	Bayonetrange(mm)	LengthC (mm)	Aperture(mm)	Outer diameter (mm)	Length d (mm)	Packing unit
JQGMZ-P07G	JQGMZ-P07B	PG07	AD10.0	3~6.5	6	6.6	17	50	50
JQGMZ-P09G	JQGMZ-P09B	PG09	AD13.0	4~8	7	8.4	20	56.5	50
JQGMZ-P11G	JQGMZ-P11B	PG11	AD15.8	5~10	7	10.2	23	58.5	50
JQGMZ-P13G	JQGMZ-P13B	PG13.5	AD18.5	6~12	7	12.2	26	62	25
JQGMZ-P16G	JQGMZ-P16B	PG16	AD21.2	8~14	7	14.2	29.5	64	25
JQGMZ-P21G	JQGMZ-P21B	PG21	AD28.5	13~18	8	18.4	37	68	20
JQGMZ-P29G	JQGMZ-P29B	PG29	AD34.5	18~25	8	25.2	44	79.5	10
JQGMZ-P36G	JQGMZ-P36B	PG36	AD42.5	22~32	9	32.5	52	85.5	5
JQGMZ-P48G	JQGMZ-P48B	PG48	AD54.5	37~44	10	44.5	58	96	5
