JQG2 Plastic Internal Thread Quick Conduit Connector

Product Name：Plastic Internal Thread Quick Conduit Connector

Product Code：JQG2

General
Variants

JQG2 Plastic Internal Thread Quick Conduit Connector
Material	Nylon 66
IP Degree	IP68
Color	Dark grey (RAL 7037), black (RAL 9005)
Temperature	-40℃ ~ 115℃, 150℃ in a short time
Product Description	It has good self extinguishing property and does not contain halogen, phosphorus and cadmium. Through ROHS test

JQG2-M Metric Thread

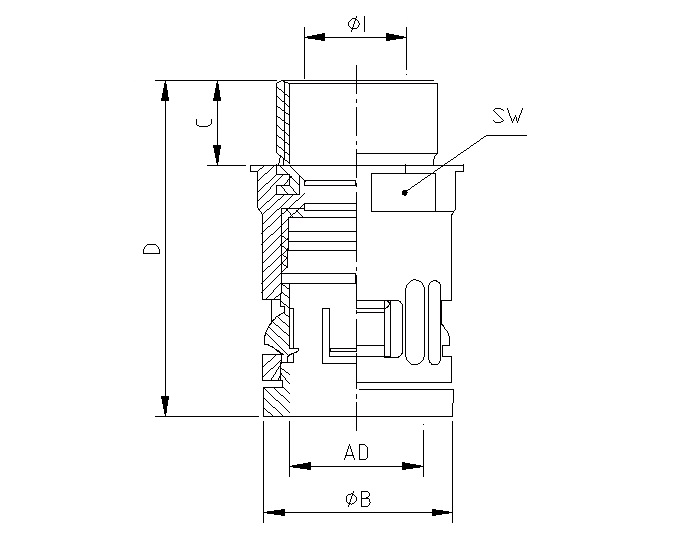

Grey	Black	Thread	Conduit size	Wrench size SW(mm)	Length C(mm)	Aperture ΦI(mm)	Outer diameter B (mm)	Length D (mm)	Packing unit (pcs/pack)
JQG2-M10G/AD10.0	JQG2-M10B/AD10.0	M10×1.0	AD10.0	15.5	12.5	7	17	36	50
JQG2-M12G/AD10.0	JQG2-M12B/AD10.0	M12×1.5	AD10.0	15.5	12.5	7	17	36	50
JQG2-M12G/AD13.0	JQG2-M12B/AD13.0	M12×1.5	AD13.0	18	13	10	20	38	50
JQG2-M16G/AD13.0	JQG2-M16B/AD13.0	M16×1.5	AD13.0	18	13.5	10	20	38	50
JQG2-M16G/AD15.8	JQG2-M16B/AD15.8	M16×1.5	AD15.8	21	13.5	12	23	41	50
JQG2-M20G/AD15.8	JQG2-M20B/AD15.8	M20×1.5	AD15.8	21	13.5	12	23	41	50
JQG2-M20G/AD18.5	JQG2-M20B/AD18.5	M20×1.5	AD18.5	24	13.5	14.5	26	43	50
JQG2-M20G/AD21.2	JQG2-M20B/AD21.2	M20×1.5	AD21.2	27	14.5	17	29.5	47	50
JQG2-M22G/AD21.2	JQG2-M22B/AD21.2	M22×1.5	AD21.2	27	14.5	17	29.5	47	50
JQG2-M25G/AD21.2	JQG2-M25B/AD21.2	M25×1.5	AD21.2	27	14.5	17	29.5	47	50
JQG2-M25G/AD25.5	JQG2-M25B/AD255	M25×1.5	AD25.5	31	15	21	34	49	25
JQG2-M25G/AD28.5	JQG2-M25B/AD28.5	M27×1.5	AD28.5	34	16	23.5	37	50	25
JQG2-M32G/AD28.5	JQG2-M32B/AD28.5	M32×1.5	AD28.5	34	16	23.5	37	50	25
*JQG2-M32G/AD31.5	JQG2-M32B/AD31.5	M32×1.5	AD31.5	37	17	26	41	53	25
JQG2-M32G/AD34.5	JQG2-M32B/AD34.5	M32×1.5	AD34.5	40	17	30	44	56	25
JQG2-M40G/AD34.5	JQG2-M40B/AD34.5	M40×1.5	AD34.5	40	17.5	30	44	56	25
JQG2-M40G/AD42.5	JQG2-M40B/AD42.5	M40×1.5	AD42.5	50	26	36.5	52	65	10
JQG2-M50G/AD42.5	JQG2-M50B/AD42.5	M50×1.5	AD42.5	50	26	36.5	52	65	10
JQG2-M50G/AD54.5	JQG2-M50B/AD54.5	M50×1.5	AD54.5	60	28.5	48	64	68.5	5
JQG2-M63G/AD54.5	JQG2-M63B/AD54.5	M63×1.5	AD54.5	60	28.5	48	64	68.5	5

JQG2-G Thread

Grey	Black	Thread	Conduit size	Wrench size SW(mm)	Length C(mm)	Aperture ΦI (mm)	Outer diameter B (mm)	Length D (mm)	Packing unit (pcs/pack)
JQG2-G1/4G/AD10.0	JQG2-G1/4B/AD10.0	G1/4"	AD10.0	15.5	12.5	7	17	36	50
JQG2-G3/8G/AD13.0	JQG2-G3/8B/AD13.0	G3/8"	AD13.0	18	13	10	20	38	50
JQG2-G3/8G/AD15.8	JQG2-G3/8B/AD15.8	G3/8"	AD15.8	21	13.5	12	23	41	50
JQG2-G1/2G/AD15.8	JQG2-G1/2B/AD15.8	G1/2"	AD15.8	21	13.5	12	23	41	50
JQG2-G1/2G/AD18.5	JQG2-G1/2B/AD18.5	G1/2"	AD18.5	24	13.5	14.5	26	43	50
JQG2-G1/2G/AD21.2	JQG2-G1/2B/AD21.2	G1/2"	AD21.2	27	14.5	17	29.5	47	50
JQG2-G3/4G/AD21.2	JQG2-G3/4B/AD21.2	G3/4"	AD21.2	27	14.5	17	29.5	47	50
JQG2-G3/4G/AD25.5	JQG2-G3/4B/AD25.5	G3/4"	AD25.5	31	15	21	34	49	25
JQG2-G3/4G/AD28.5	JQG2-G3/4B/AD28.5	G3/4"	AD28.5	34	16	23.5	37	50	25
JQG2-G1G/AD28.5	JQG2-G1B/AD28.5	G1"	AD28.5	34	16	23.5	37	50	25
*JQG2-G1G/AD31.5	JQG2-G1B/AD31.5	G1”	AD31.5	37	17	26	41	53	25
JQG2-G1G/AD34.5	JQG2-G1B/AD34.5	G1"	AD34.5	40	17.5	30	44	56	25
JQG2-G1 1/4G/AD34.5	JQG2-G1 1/4B/AD34.5	G1 1/4"	AD34.5	40	17.5	30	44	56	25
JQG2-G1 1/4G/AD42.5	JQG2-G1 1/4B/AD42.5	G1 1/4"	AD42.5	50	26	36.5	52	65	10
JQG2-G1 1/2G/AD42.5	JQG2-G1 1/2B/AD42.5	G1 1/2"	AD42.5	50	26	36.5	52	65	10
JQG2-G1 1/2G/AD54.5	JQG2-G1 1/2B/AD54.5	G1 1/2"	AD54.5	60	28.5	48	64	68.5	5
JQG2-G2G/AD54.5	JQG2-G2B/AD54.5	G2"	AD54.5	60	28.5	48	64	68.5	5
