Plastic External Thread 90 Degree Arc Quick Conduit Connector
ui-button
ui-button
Product Name:Plastic External Thread 90 Degree Arc Quick Conduit Connector
Product Code:JQAW90
Inquiry
General
Variants
JQAW90 Plastic External Thread 90 Degree Arc Quick Conduit Connector
Material
Nylon
Color
Dark grey (RAL 7037), black (RAL 9005)
Temperature
-40℃ ~ 115℃, up to 150℃ in a short time, IP66, use appropriate sealing ring (FR)

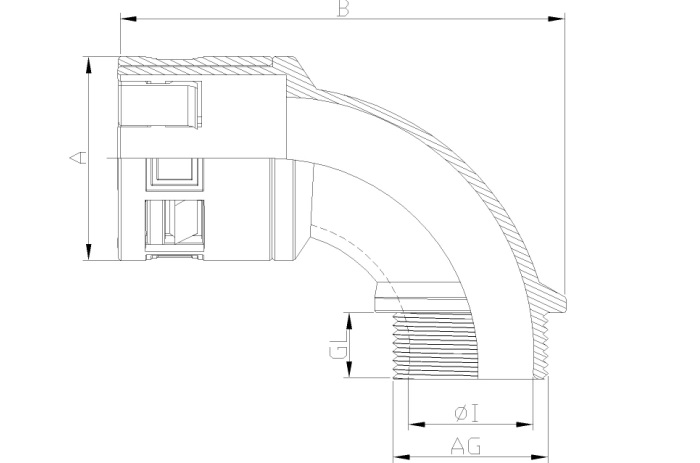

Product features
Round arc design is more convenient for threading
JQAW90-M Metric Thread
Model
Thread
Conduit size
Inner aperture
Φl(mm)
Height
A (mm)
Width
b (mm)
Thread outer diameter
Ag (mm)
Thread length
GL (mm)
Packing unit
(pcs/pack)
Black
JQAW90-M10×1.5B/AD10.0
M10×1.5
AD10.0
6.5
17.5
46
10
8
50
JQAW90-M12×1.5B/AD13.0
M12×1.5
AD13.0
8.5
20.5
56
12
10
50
JQAW90-M16×1.5B/AD15.8
M16×1.5
AD15.8
12.5
23
60
16
10
50
JQAW90-M20×1.5B/AD18.5
M20×1.5
AD18.5
16
28
69
20
10
50
JQAW90-M20×1.5B/AD21.2
M20×1.5
AD21.2
15
30
73
20
12
25
JQAW90-M25×1.5B/AD25.5
M25×1.5
AD25.5
21
34
80
25
12
25
JQAW90-M25×1.5B/AD28.5
M25×1.5
AD28.5
21
37
82
25
12
20
JQAW90-M32×1.5B/AD34.5
M32×1.5
AD34.5
27.5
44
96
32
12
20
JQAW90-M40×1.5B/AD42.5
M40×1.5
AD42.5
35.5
53
108
40
12
10
JQAW90-M50×1.5B/AD54.5
M50×1.5
AD54.5
44
67
120
50
14.5
5
JQAW90-P German PG Thread
Model
Thread
Conduit size
Inner aperture
Φl(mm)
Height
A (mm)
Width
b (mm)
Thread outer diameter
Ag (mm)
Thread length
GL (mm)
Packing unit
(pcs/pack)
Black
JQAW90-P07B/AD10.0
PG7
AD10.0
7.5
17.5
46
12.5
8
50
JQAW90-P09B/AD13.0
PG9
AD13.0
10.5
20.5
56
15.2
10
50
JQAW90-P11B/AD15.8
PG11
AD15.8
13
23
60
18.6
10
50
JQAW90-P13B/AD18.5
PG13.5
AD18.5
16
28
69
20.4
10
50
JQAW90-P16B/AD21.2
PG16
AD21.2
17
30
73
22.5
12
25
JQAW90-P21B/AD25.5
PG21
AD25.5
21
34
80
28.3
12
25
JQAW90-P21B/AD28.5
PG21
AD28.5
22.5
37
82
28.3
12
20
JQAW90-P29B/AD34.5
PG29
AD34.5
30
44
96
37
12
20
JQAW90-P36B/AD42.5
PG36
AD42.5
37
53
108
47
12
10
JQAW90-P48B/AD54.5
PG48
AD54.5
48
67
126
59.3
14.5
5
