JQAC Integrated Round Cover Fixing Seat

Product Name：Integrated Round Cover Fixing Seat

Product Code：JQAC

General
Variants

JQAC Integrated Round Cover Fixing Seat
Material	Nylon
Color	Dark grey (RAL 7037), black (RAL 9005)
Temperature	-40-110℃
Product Description	The integrated conduit fixing seat has a round arc shape on the top of the cover, which has good clamping effect and is not easy for the conduit to fall off

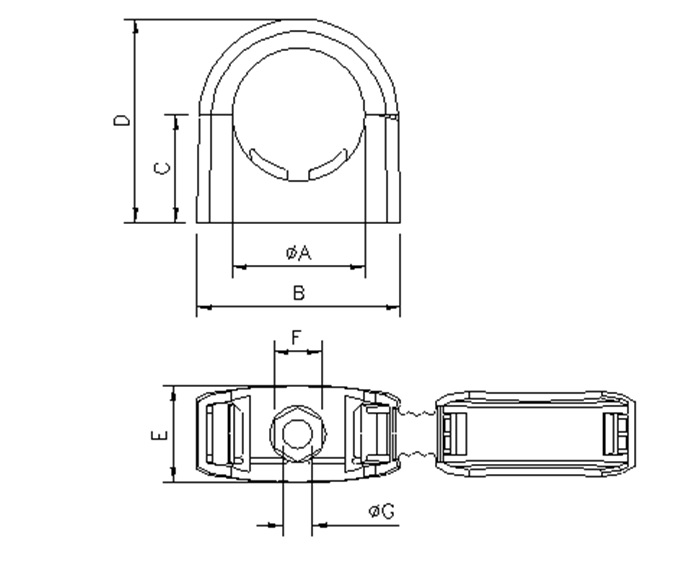

Model	Conduit size	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G(mm)	Packing unit (pcs/pack)
Grey	Black
JQAC AD10.0B	JQAC AD10.0G	AD10.0	22.6	12.9	23.3	11.6	7.5	4.2	10
JQAC AD13.0B	JQAC AD13.0G	AD13.0	22.6	12.9	23.3	11.6	8.5	5.1	10
JQAC AD15.8B	JQAC AD15.8G	AD15.8	26.7	15.1	26.9	13.7	8.8	5.1	10
JQAC AD21.2B	JQAC AD21.2G	AD21.2	33.8	19.5	34.9	17.5	10.4	6.1	10
JQAC AD28.5B	JQAC AD28.5G	AD28.5	43.8	23.4	43.7	20.7	10.3	6.1	10
JQAC AD34.5B	JQAC AD34.5G	AD34.5	52.8	16.9	51.6	23.2	10.2	6.2	10
JQAC AD42.5B	JQAC AD42.5G	AD42.5	64.5	32.4	62.5	27.0	10.2	6.2	10
JQAC AD54.5B	JQAC AD54.5G	AD54.5	81.0	38.5	77.0	32.1	10.2	6.2	10
