JFG Plastic External Thread Screwed Conduit Connector

Product Name：Plastic External Thread Screwed Conduit Connector

Product Code：JFG

General
Variants

JFG Plastic External Thread Screwed Conduit Connector

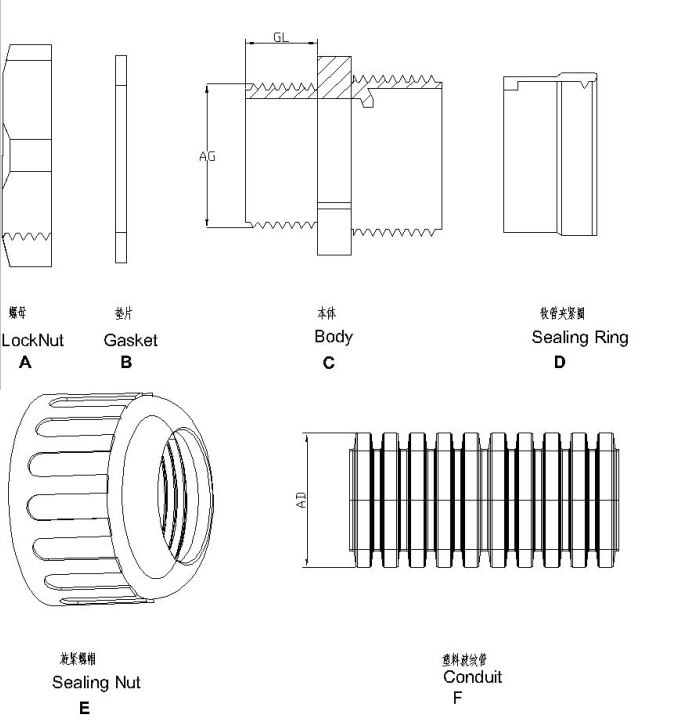

Material	A. Nylon is used for C and E, and modified rubber is used for B and D
Color	Black (RAL 9005)
Temperature	-40℃ ~ 115℃, 150℃ in a short time
Flame retardancy	IP66, it has good self extinguishing property and does not contain halogen, phosphorus and cadmium. It has passed ROHS test

JFG-M Metric Thread

Model	Thread	Conduit size	Thread outer diameter AG (mm)	Thread length GL (mm)	Packing unit (pcs/pack)
JFG-M12B/AD10.0	M12×1.5	AD10.0	12	8.5	50
JFG-M16B/AD13.0	M16×1.5	AD13.0	16	10	50
JFG-M16B/AD15.8	M16×1.5	AD15.8	16	10	50
JFG-M20B/AD15.8	M20×1.5	AD15.8	20	10	50
JFG-M16B/AD18.5	M16×1.5	AD18.5	16	10	50
JFG-M20B/AD18.5	M20×1.5	AD18.5	20	10	50
JFG-M20B/AD18.5	M20×1.5	AD18.5	20	10	50
JFG-M20B/AD21.2	M20×1.5	AD21.2	20	10	50
JFG-M25B/AD28.5	M25×1.5	AD28.5	25	12	50
JFG-M32B/AD28.5	M32×1.5	AD28.5	32	12	50
JFG-M32B/AD34.5	M32×1.5	AD34.5	32	12	20
JFG-M40B/AD42.5	M40×1.5	AD42.5	40	12	10
JFG-M50B/AD54.5	M50×1.5	AD54.5	50	15	10
JFG-M63B/AD54.5	M63×1.5	AD54.5	63	20	10

JFG-P German PG Thread

Model	Thread	Conduit size	Thread outer diameter AG (mm)	Thread length GL (mm)	Packing unit (pcs/pack)
JFG-P07B/AD10.0	PG7	AD10.0	12.5	10
JFG-P09B/AD10.0	PG9	AD10.0	12.5	10	50
JFG-P09B/AD13.0	PG9	AD13.0	12.5	10	50
JFG-P11B/AD13.0	PG11	AD13.0	18.6	10	50
JFG-P11B/AD15.8	PG11	AD15.8	15.2	10	50
JFG-P13/AD15.8	PG13.5	AD15.8	20.4	10	50
JFG-P16/AD15.8	PG16	AD15.8	22.5	11	50
JFG-P11B/AD18.5	PG11	AD18.5	15.2	10	50
JFG-P13/AD18.5	PG13.5	AD18.5	20.4	10	50
JFG-P16B/AD18.5	PG16	AD18.5	22.5	11	50
JFG-P16B/AD21.2	PG16	AD21.2	22.5	11	50
JFG-P21B/AD28.5	PG21	AD28.5	28.3	12.5	50
JFG-P29B/AD34.5	PG29	AD34.5	37	13	50
JFG-P36B/AD42.5	PG36	AD42.5	47	13	20
JFG-P48B/AD54.5	PG48	AD54.5	59.3	16	10
