Product Name:Porous Signboard
Product Code:MMP
Inquiry
General
Variants

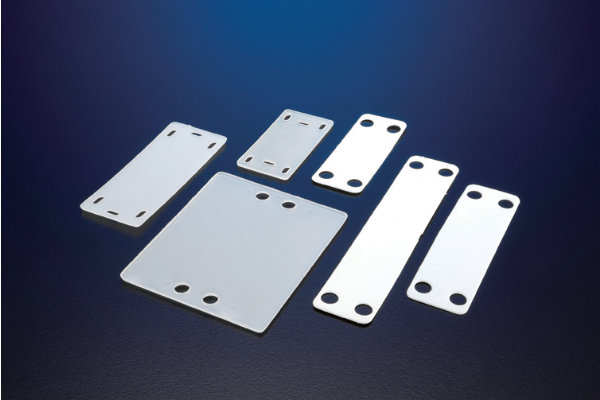

MMP Porous Signboard
Material
Nylon
Color
White
Tie width
Not more than 4.8mm
Product Description
Porous cable signs need to be fixed with a tie through multiple spaces, written on the coarse side with sand grain with an oily pen, and then fixed with a lock tie
Model
LengthL (mm)
WidthW (mm)
Thickness
T (mm)
Tie hole lengthHL (mm)
Tie hole widthHW (mm)
Tie hole diameterΦ(mm)
Packing unit(PCS/package)
MMP-2615
26
15.2
1.2
5.2
2.2
-
100
MMP-4221
42.2
21.2
1.2
4.2
2
-
MMP-6025
60
25
1.2
5.3
2.3
-
MMP-6250
62
50
1.3
-
-
5.1
MMP-3819
38.5
19.1
0.4
-
-
5.0
MMP-4419
45
19.1
0.4
-
-
5.0
MMP-5019
51
19.1
0.4
-
-
5.0
MMP-6319
64.5
19.1
0.4
-
-
5.0
MMP-6344
63.8
44.8
0.4
-
-
5.0
MMP-8819
90
19.1
0.4
-
-
5.0
